CrossCoat™ - Non-Contact Metering Slot Die

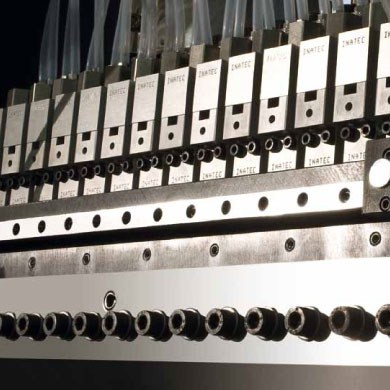

The CrossCoat™ is a non-contact, metered slot applicator that produces a precise flow of adhesive for coating applications that require streak-free results.


 Overview

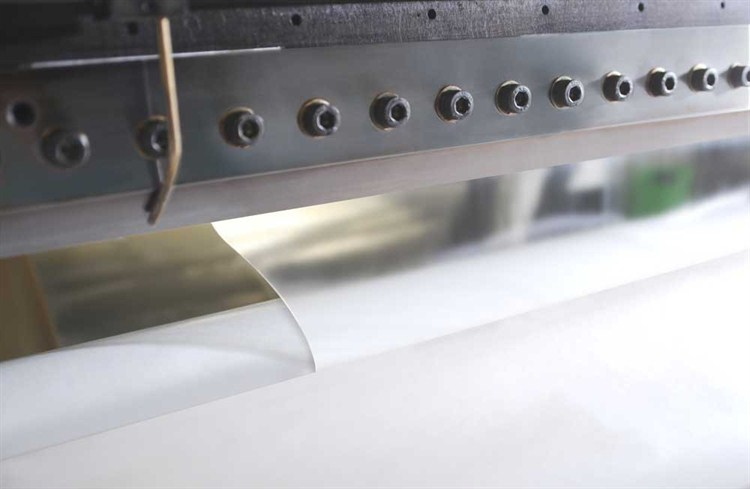

ITW Dynatec’s CrossCoat™ is a non-contact, metered slot applicator that produces a precise flow of adhesive for coating applications that require streak-free results. A continuous film is formed from the applicator to the substrate. The surface attraction of the adhesive enables it to be stretched as it is applied to the substrate, producing highly accurate and repeatable results. Cross-web accuracies to ±3% can be achieved with a minimum application coat weight of 1gsm at web speeds of 1,000 m/minute or more.


 Features
  • Cross-web distribution accuracies to ±3%.
  • Ideal for heat sensitive materials.
  • Coat weights as low as 1gsm.
  • Coat weight and width changes during production.
  • Consistent coating on irregular surfaces.
  • Streak-free finish.
  • Non-contact application encapsulates surface contaminants instead of trapping them between the die lip and substrate, producing consistent coating performance while minimizing waste.

 The Dynatec Difference
  • No Heat Memory - Heat sensitive materials such as thin PP and PE film do not come into contact with the die lip, eliminating damage to the film.
  • Conformity to Irregular Surfaces - Establishing an adhesive film enables 100% coating of fabrics, textured foils, technical textiles and other non-flat surfaces.
  • Streak-Free Coating - Smooth and clear fluid coating that encapsulates substrate contaminants instead of producing dry lines.
  • Flexible Coat Weights - The non-contact coating method permits elongation of the adhesive until the desired coat weight is achieved. Coat weights from 1 to over 100 gsm are achievable “on-the-fly” dependent upon the adhesive rheology.



Video: CrossCoat Non-Contact Metered Slot Die

GDPR Cookie Consent Viper

Our website uses Cookies. By clicking "I Agree" you consent that we will continue using cookies. If you do not agree, you can disable cookies in your web browser as explained in our privacy policy.

Cookie Policy

A cookie, also known as an HTTP cookie, web cookie, or browser cookie, is a piece of data stored by a website within a browser, and then subsequently sent back to the same website by the browser. Cookies were designed to be a reliable mechanism for websites to remember things that a browser had done there in the past, which can include having clicked particular buttons, logging in, or having read pages on that site months or years ago.

Strictly Necessary Cookies

These cookies cannot be disabled

These cookies are necessary for the website to function and cannot be switched off. They are normally set in response to your interactions on the website e.g. logging in etc.

Cookies:
  • .ASPXANONYMOUS
  • .DOTNETNUKE
  • __RequestVerificationToken
  • authentication
  • dnn_IsMobile
  • language
  • LastPageId
  • NADevGDPRCookieConsent_portal_0
  • userBrowsingCookie

Performance Cookies

These cookies allow us to monitor traffic to our website so we can improve the performance and content of our site. They help us to know which pages are the most and least popular and see how visitors move around the site. All information these cookies collect is aggregated and therefore anonymous. If you do not allow these cookies we will not know when you have visited or how you navigated around our website.

Cookies:
  • _ga
  • _gat
  • _gid

Functional Cookies

These cookies enable the website to provide enhanced functionality and content. They may be set by the website or by third party providers whose services we have added to our pages. If you do not allow these cookies then some or all of these services may not function properly.

Cookies:

Currently we are not utilizing these types of cookies on our site.

Targeting Cookies

These cookies may be set through our site by our advertising partners. They may be used by those companies to build a profile of your interests and show you relevant adverts on other sites. They do not store directly personal information, but are based on uniquely identifying your browser and internet device. If you do not allow these cookies, you will experience less targeted advertising.

Cookies:

Currently we are not utilizing these types of cookies on our site.


System CrossCoat™
Adhesive Viscosity 1,000 - 200,000 cps
Max Operating Temperature 200º C (425º F)
Pneumatic Pressure 5 to 9 bar (74 to 125 psi)
Adhesive Pressure 7 to 68 bar (100 to 1000 psi)
