Velocity Compact Metered Applicator Platform

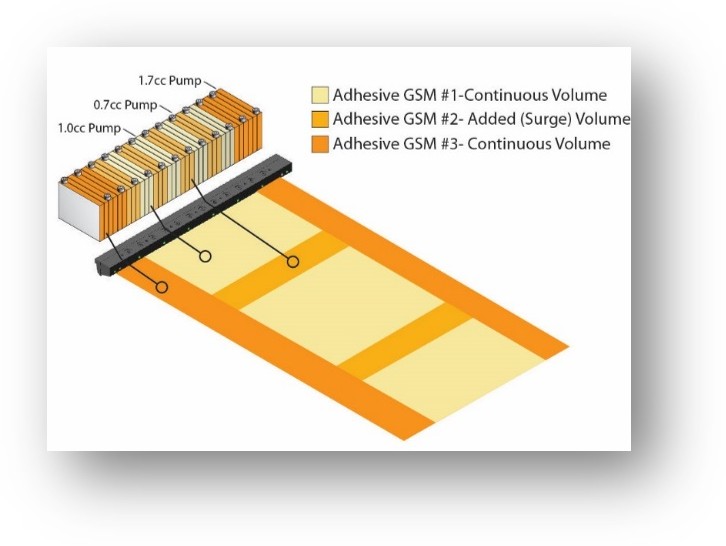

The Velocity™ metered applicator platform features a smaller, simplified footprint with a design that is based on Dynatec’s patented, award-winning Vector™ technology. This advanced solution features precision adhesive control to individual modules, resulting in best-in-class adhesive dispensing accuracy up to ±1 % and providing end users with products of the highest quality.

Overview

It is the only system in the market that offers Ultra™ Link advantages combined with a metered technology.
Optimum performance during machine ramps also makes it an ideal solution for frequently changing product sizes.

Downloads

Product Brochure Choose the Correct Slot Die Applicator Case Study with Velocity Product Manual

Features

Coating width up to 300mm.
Modular design allows a quick conversion from slot, to spray, to strand coating.
High precision pumps for best-in-class adhesive dispensing accuracy up to ±1 %.
Easy pump swaps in as little as five minutes.
Compact size makes it the perfect choice for demanding applications with small machine envelopes.

The Dynatec Difference

Vector™ Quick-Change Metering Pumps

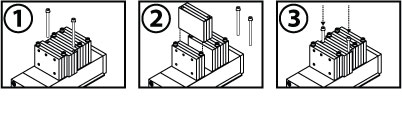

Vector™ Pumps can be easily changed in less than five minutes by removing two retaining screws. With conventional equipment, pump changes often take more than an hour of cumbersome work with significant downtime.

Diagram of pump changing

Random and Omega Nozzle patterns

Random Adhesive Pattern 1 Random Adhesive Pattern 2

Omega Adhesive Pattern

Technical Data

Sizes	50 mm	100 mm	150 mm	200 mm	250 mm	300 mm
Max # of Pumps	2	4	6	8	10	12
Pump Precision	Vector Pumps @ +/- 1 %
Operating Temperature Range	10 – 200 °C
Supply Voltage Set-Up	240 V 1PH 50/60 HZ
Configurations	Slot, Spray, Strand Coating
Compatible Nozzles	Ultra Slot Extruders, Ultra HSI spray nozzles, HS UFD spray nozzles, HS Elite spray nozzles, Ultra Touch strand nozzles, Ultra Stitch strand nozzles
Module Used	Ultra
Module Spacing	25 mm
Vector Pump Sizes	0.15, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.7, 2.4, 3.34 cc/rev
Velocity Pump Sizes	0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.7 cc/rev
RPM Range	0-45 RPM
Motor Type	Servo
