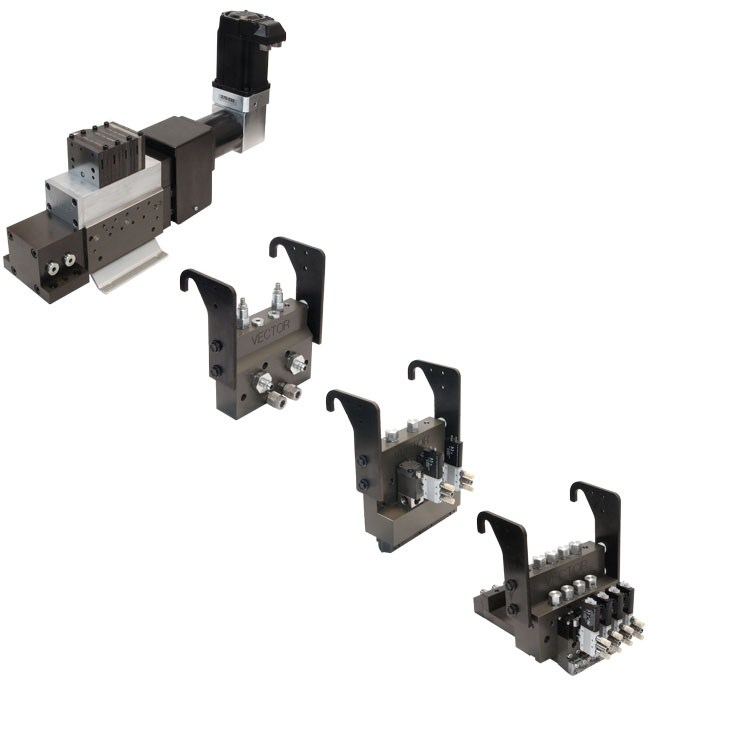

Vector Application Adapters - Vector Metering Platform
The Vector™ spray applicator is available in six coating widths ranging from 100mm to 1000mm, expandable in 100mm increments, providing extreme accuracy at the point of application.
Overview
The Vector™ spray applicator is engineered for precision application onto a variety of substrates with metering accuracy of up to ±0.5% every 25mm in width.
Downloads
Features
- Spray applicator shares a common pump base with other applicators including slot and bead.
- Pumps can be configured every 25mm or on custom centers.
- HS Series modules provide intermittent patterns as low as 4ms of on-time.
- AC or Servo motor and precision gearbox for accurate speed control of pumps (1 to 45 RPM).
- Utilizes Omega™ or Random Fiber quick-change nozzle technology for precision conrol of pattern and adhesive savings up to 70%.
- Metering accuracy of up to ±0.5% every 25mm in width.
- Standard applicator available in widths up to 1000mm.
- Vector™ applicator capable of providing an individual metered flow output to each 25mm module.
- Vector™ pumps can be changed out in less than five minutes, minimizing changeover time.
The Dynatec Difference
Vector™ Quick-Change Metering Pumps
Vector™ Pumps can be easily changed in less than five minutes by removing two retaining screws. With conventional equipment, pump changes often take more than an hour of cumbersome work with significant downtime.
Random and Omega Nozzle patterns
Random Adhesive Pattern 1 Random Adhesive Pattern 2
Omega Adhesive Pattern
Technical Data
| System | Vector™ Spray Adapter |
|---|---|
| Operating Temperature | 10º C to 218º C (50º F to 425º F) |
| Adhesive Add-On Rates | 0.4 to 150 cc/min/pump |
| Working Viscocity | 500 to 30,000 cps |
| Temperature Zone | 1 adhesive, 1 air heater |
| Available Pump Sizes | 0.4, .5, .6, .7, .8, .9, 1.0, 1.7, 2.4, 3.34 cc/rev |
| Available Head Sizes | 100mm/4 pump, 200mm/8 pump, 300mm/12 pump, 400mm/16 pump, 500mm/20 pump, 600mm/24 pump, 700mm/28 pump, 800mm/32 pump, 900mm/36 pump, 1000mm/40 pump |
