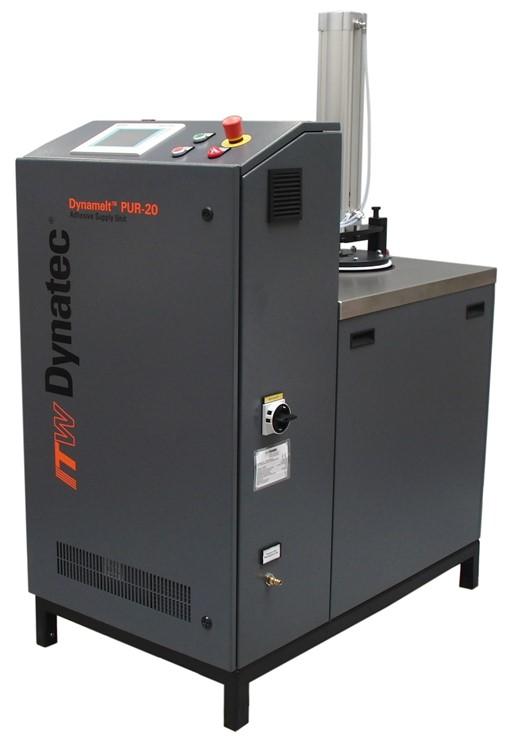

PUR Bag Melter
The Dynamelt PUR Series bag melter is designed to meet the unique needs for the melting and delivery of PUR hot melt adhesives.
Overview
The DynaMelt PUR provides gentle melting of reactive adhesives in either 2Kg or 20Kg metalized Mylar bags. Escape of harmful gases into the atmosphere and intrusion of moisture into the adhesive is prevented via a patented, air-tight sealing ring at the bottom of the feed tube. The self-sealing design allows the unit to be de-energized and left unattended for several days with no need to purge the PUR from the system, provided the exposed application orifices are properly sealed.
Downloads
Features
- The PUR hotmelt does not require unpacking, it is simply melted out of its bag packaging.
- Gear pumps can accommodate a wide variety of adhesive viscosities.
- Clean operation with virtually no adhesive residue waste.
The Dynatec Difference
The bag content is completely molten in the bag melter tank. No loss of adhesive!
Technical Data
| System | PUR-2 | PUR-20 | PUR-20D | PUR-20 Auto |
|---|---|---|---|---|
| Hopper Capacity/ Bag Size |
0,5kg (1lb) 2kg (4.4lbs) |
10kg (22lbs) 18kg (40.7lbs) |
10kg (22lbs) 18kg (40.7lbs) |
1kg (2.2lbs) 18kg (40.7lbs) |
| Operating Temperature | 40 to 190°C (104 to 374°F) | 40 to 190°C (104 to 374°F) | 40 to 190°C (104 to 374°F) | 40 to 190°C (104 to 374°F) |
| Melt Rate (per hour)* | 6 kg/h (13lb/h)* | 25 kg/h (55 lb/h)* | 25 kg/h (55 lb/h)* | 25 kg/h (55 lb/h)* |
| Gear Pumps Standard |
2 Single Pumps or 1 dual pump |
2 Single Pumps or 1 dual pump |
2 dual pumps | 1 single pump |
| Hose Output Zones | 3** | 3** | 3** | 3** |
| Max Working Hydraulic Pressure |
85bar (1,233 PSI) | 85bar (1,233 PSI) | 85bar (1,233 PSI) | 85bar (1,233 PSI) |
| Adhesive Viscosity Range |
500 to 50,000 cps | 500 to 50,000 cps | 500 to 50,000 cps | 500 to 50,000 cps |
| Electrical Service Standard |
240 VAC 3 Ph. 50/60 Hz or 400 VAC 3 Ph. Y 50/60 Hz |
240 VAC 3 Ph. 50/60 Hz or 400 VAC 3 Ph. Y 50/60 Hz |
240 VAC 3 Ph. 50/60 Hz or 400 VAC 3 Ph. Y 50/60 Hz |
240 VAC 3 Ph. 50/60 Hz or 400 VAC 3 Ph. Y 50/60 Hz |
*Dependant upon adhesive type.
** Dependant upon application.
