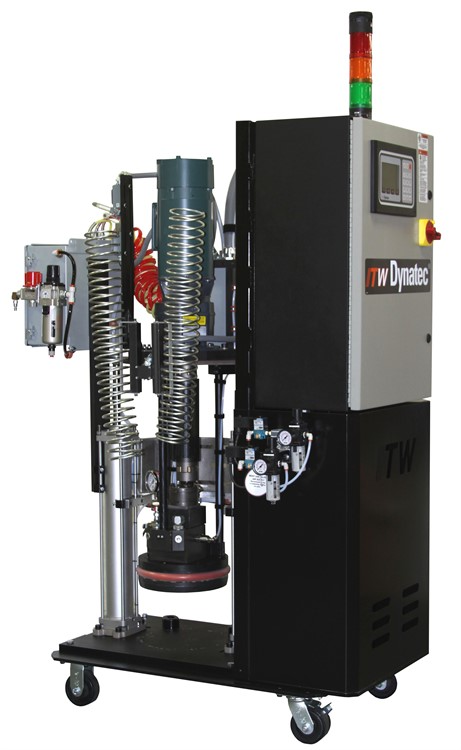

DM5 DynaPail - Adhesive Pail Melter
With it‘s simplicity, innovation and flexibliity, the DM5 DynaPail™ provides uninterrupted flow of hot melt adhesive to meet your specific production demands.
Overview
The DM5 DynaPail melts and supplies a variety of adhesive types, including PUR reactive adhesives, sealants and coatings from a standard 5-gallon steel pail.
Daily operations are simplified with the DM5 DynaPail’s™ standard features, which include field-interchangeable platen faces, self-diagnostics, multiple temperature control sensors, and low/empty pail indicators.
Downloads
Features
- Unique platen designs provide excellent platen force, melt rates, adhesive transfer.
- Suitable for many adhesive types including PUR reactive adhesives, sealants and coatings from a standard 5-gallon steel pail.
- Compact footprint provides flexibility and ease of installation.
- A removable platen face allowing for field retrofit, saving you time and money. The removable platen face allows more accessibility for maintenance and cleaning.
- Low/empty pail indicators.
The Dynatec Difference
Available Options
- Digital Pressure Transducer Kit
- Platen Circulation
- Swirl Kit, Dual, 240V
- Vent hood for PUR adhesive applications
- Finned Platen for High Flow with Standard Air Inject
- Smooth Platen for PUR with Standard Air Inject
Technical Data
| System | DM5 DynaPail™ |
|---|---|
| Operating temperature range | 40°C to 232°C (100°F to 450°F) |
| Melt rate* | up to 14kg/h (30lbs/h)* |
| Gear pump sizes | 0.55 ccm – 10 ccm |
| Pail Size | 5 gallon (19I) steel pail US Standard |
| Pail Inner Diameter | 11.25 in (30 cm) |
| Hose/Head output zones | 2/2 |
| Aux output zones | 2 |
| Supply voltage setup 1 | 240 VAC Delta, 480 VAC Delta |
| Supply voltage setup 2 | 380/400 VAC WYE Volts |
| Total Amp draw | 6.7kW |
| Height | 165cm (64.9in) |
| Depth | 65cm (25.6in) |
| Width | 114.3cm (45.0in) |
*Melt rates vary with adhesive type
