DM55 DynaDrum™ - Bulk Adhesive Melter
The DM55 DynaDrum™ is a Bulk Adhesive Melter that combines a heated platen, pump and all controls needed to melt and dispense hot melt adhesives, PUR reactive adhesives, sealants or coatings from a standard 55-gallon (208 liters) fiber or steel drum.
Overview
The DM55 provides uninterrupted flow of hot melt adhesive for high volume production demands. Daily operations are simplified with the DM55 DynaDrum’s standard features which include field-interchangeable platen faces, an intuitive touch screen, self-diagnostics, low/empty drum indicators and platen location in real time.
Downloads
Features
DM55 Dynadrum™ with DynaControl V6:
- NEW Advanced position monitoring system allows for real time platen position monitoring and accurate adhesive display.
- NEW fastest platen heat up time in the industry at 7 minutes!
- CE Certification Standard
- Available in gear pump or piston pump configurations for varying applications.
- Platen faces are available for most adhesive types, including non-reactive and reactive PUR adhesives, sealants and coatings.
- Platen guards, vent hood and pallet spacers
- Unique platen design provides excellent platen force, melt rates and adhesive transfer.
- Adjustable clamshell mechanism effectively secures fiber or steel drums.
- Multiple platen seals for increased protection.
- Finned Platen for High Flow with Standard Air Inject
- Smooth Platen for PUR with Standard Air Injec

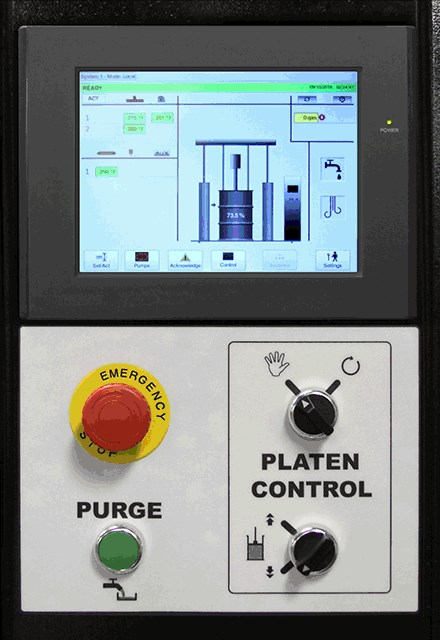

- User-friendly touch-screen simplifies operation and facilitates monitoring.
- Two-button start for operator safety.
The Dynatec Difference
Modular Construction Simplifies Operation
The DM55 DynaDrum™ features a removable platen face allowing for field retrofit, saving you time and money. Particularly when working with reactive adhesives, the removable platen face allows more accessibility for maintenance and cleaning. There is no need to purchase a new drum melter or ship the existing unit back to the OEM for factory retrofit, simply keep a spare on-hand to change out during cleaning to prevent any significant downtime. New standard DynaControl V6 System also provides seamless integration with other PLCs systems.
Technical Data
| System | DM55 DynaDrum™ |
|---|---|
| Melt Rate (non-reactive platen)* | up to 250 kg/h (600 lbs/h)* |
| Piston Pump Compression Rato | 15:1 Piston Pump, Pressure Balanced |
| Gear Pump Specifications | 8.5/30/45 cc/rev** |
| Platen Watts | 35kW |
| Hose Output | 2.4kW each (2 max) |
| Head Output | 2.4kW each (2 max) |
| Pump Heater | 1.2kW |
| Auxiliary Output | 2.4kW each (2 max) |
| Voltage | 240 VAC 3PH + PE (Delta), 480 VAC (Delta), 400 VAC 3PH + N + PE (WYE) |
*Melt and pump rates dependent on adhesive type
| Dimensions | DM55 DynaDrum™ |
|---|---|
| Height | 184cm (72.4in) |
| Height Platen Extended | 286.2cm (112.7in) |
| Depth | 91.6cm (36in) |
| Width | 153.3cm (60.4in) |
| Weight (empty) | 771kg (1,700lbs) |
| Optional Accessories |
|---|
| Smooth finned platen for reactive adhesives |
| Tandem capabilities |
| Digital pressure transducer |
| Continuous platen position sensor |
| Platen guards, vent hood and pallet spacers |
