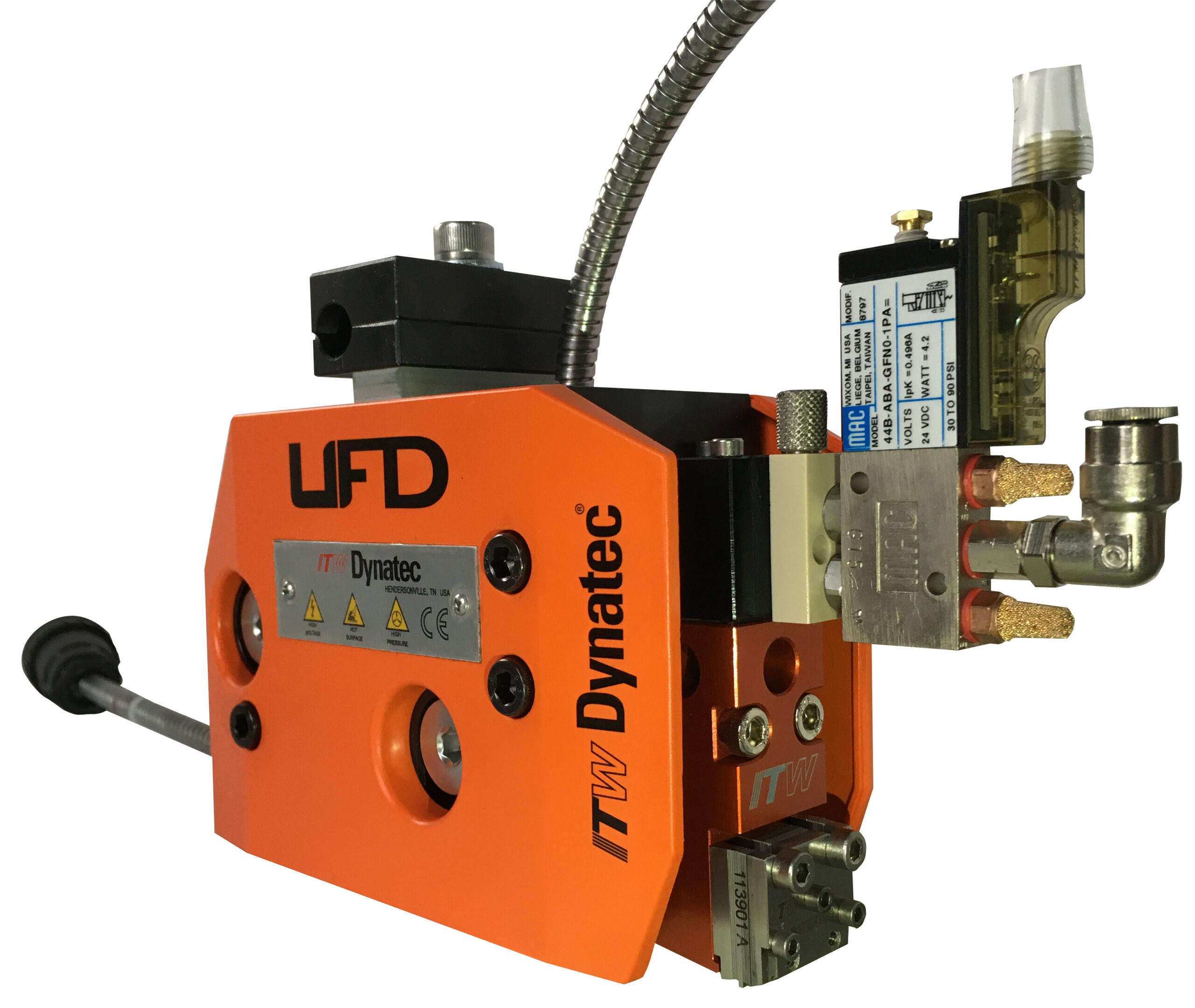

UFD High Speed - Adhesive Applicator
UFD High Speed™ is our most precise and fastest applicator, featuring best-in-class cut-off, with our patented quick-connect direct-mounted solenoid.
Overview
With ITW Dynatec’s patented Omega™ and Random Fiber™ patterns, UFD-HS™ applicator heads provide up to 50 % adhesive savings by using less glue while maintaining, if not improving, bond strength.
Downloads
Features
- Ideal for high-speed intermittent application with on times down to 3.5 milliseconds and cycle speeds up to 6,000 per minute
- Module design positions the valve seat directly behind the nozzle for improved performance.
- Direct-connect solenoid gives faster valve response and faster cycle times for intermittent applications.
- Solenoid can be removed and replaced in a fraction of the time of a tube-mounted solenoid.
- LED in solenoid connector for quicker troubleshooting.
- Patented Omega™ and Random Fiber™ patterns use less adhesive and maintain or improve bond strength.
- Continuous pattern edge accuracy of ±2 millimeter, depending on the adhesive
- Rapid changeover of components
- Low SCFM requirements from .05 per 25mm width
- Single screw solenoid mounting
- Features long-life HS Series reverse acting module with direct or solenoid interface
- Simplified and quick-change solenoid, module or nozzle
- Solenoid can be rotated for left, right hand or center position (This feature is only available for the 1 & 2 port configurations
The Dynatec Difference
Patented Technology
Many companies say that they are innovators by providing techniques for laying down fiberized adhesive (spiral swirl and random fiber), but only ITW Dynatec has the patents to prove it.
ITW Dynatec invented Laminated Plate Technology, which is used in all ITW Dynatec UFD nozzles and is the most effective way to lay down fiberized adhesive. The unique and patented configuration of the laser cut, stainless steel-laminated plates is the only configuration on the market that allows the production of the Omega™ adhesive pattern and the production of the most effective Random Fiber pattern available.
This new product spawned many imitators, but none have been able to match the performance provided by ITW Dynatec’s Laminated Plate Technology. When you use UFD Fiberized Spray applicators from ITW Dynatec, you can be certain that you are using the best product on the market.
Random Adhesive Pattern 1 Random Adhesive Pattern 2
Omega Adhesive Pattern
Technical Data
| System | UFD 050 | UFD 050 | UFD 075 | UFD 100 | UFD 150 |
|---|---|---|---|---|---|
| Max. No. Modules | 1 | 2 | 3 | 4 | 6 |
| Spacing Between Nozzle Centers | — | 25.2 mm (1 in) | 25.2 mm (1 in) | 25.2 mm (1 in) | 25.2 mm (1 in) |
| Temperature Range | 38ºC to 218ºC (100ºF to 425ºF) |
||||
| Warm-up Time | 15 min. (cold start) 5 min. (module change) |
||||
| Adhesive Viscosity | 100 to 30,000 cps | ||||
| Maximum Adhesive Pressure | 68 bar (1000 psi) | ||||
| Air Pressure Range | 4.1 to 6.9 bar (60 to 100 psi) |
||||
| Electrical Service Standard | 200-240 VAC 1 Phase 50-60Hz |
||||
| Dimensions | UFD 050 | UFD 050 | UFD 075 | UFD 100 | UFD 150 |
|---|---|---|---|---|---|
| Height (H) | 133.5 mm (5.25 in) | ||||
| Depth (D) | 216.2 mm (8.51 in) | ||||
| Width (W) | 50 mm (1.97 in) | 50 mm (1.97 in) | 75 mm (2.95 in) | 100 mm (3.94 in) | 150 mm (5.91 in) |
* Specifications are based on 1,000 cps adhesive
