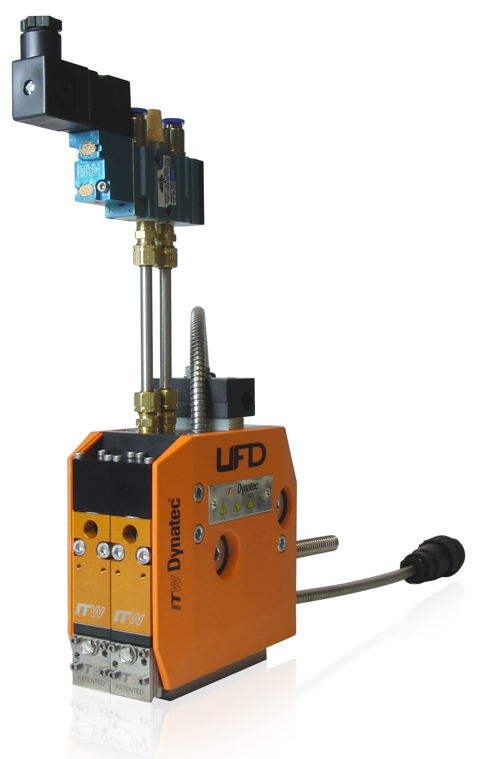

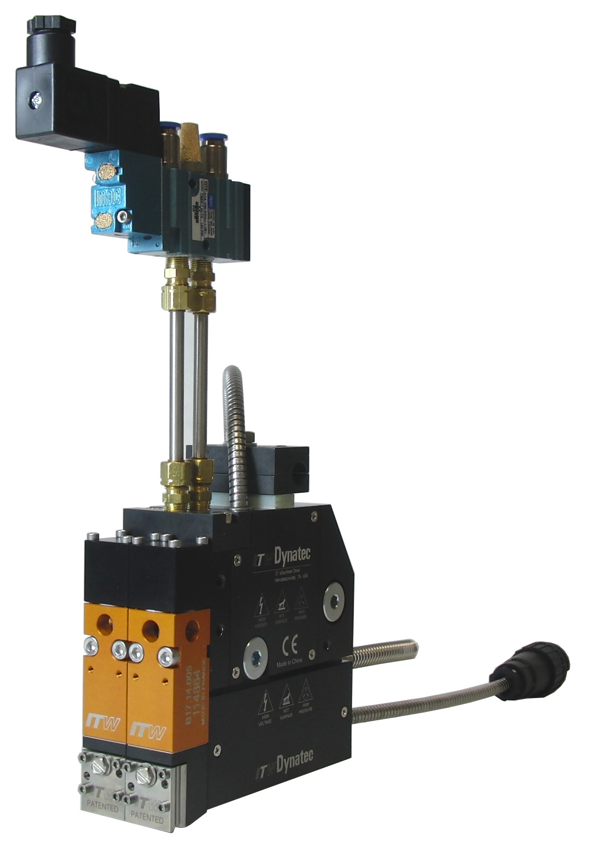

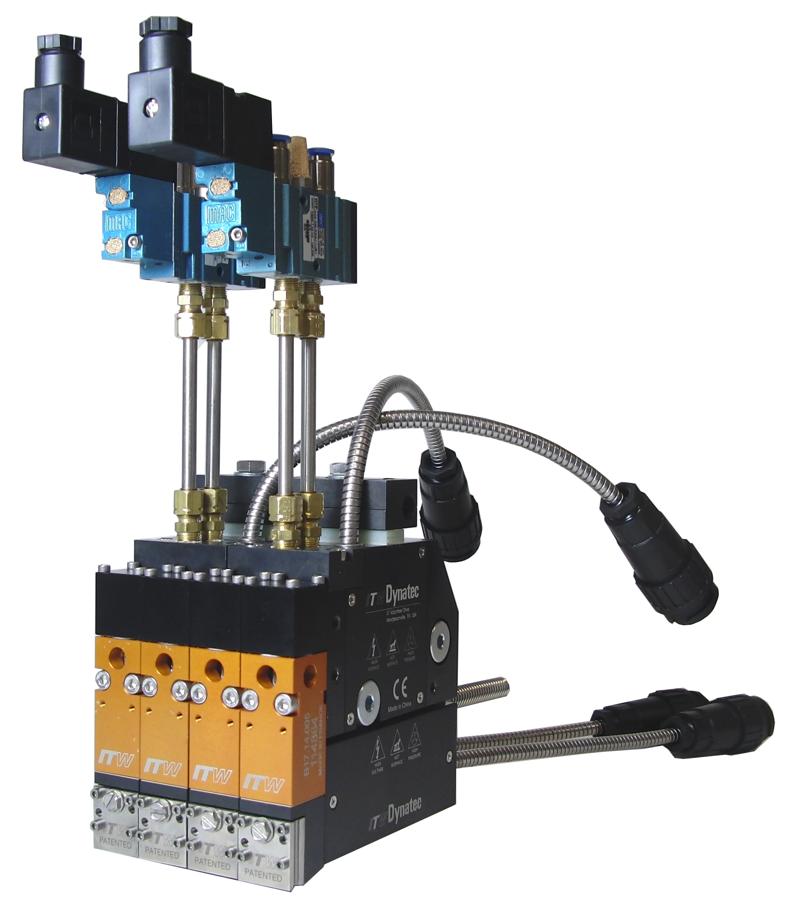

UFD™ - Fiberized Spray Applicator
ITW Dynatec’s UFD Spray Applicators are air-operated, single or multi-module hot melt adhesive applicator assemblies with integrated basket filters, which prevent particulate
matter from obstructing flow through the heads.
Overview
UFD® Brand fiberized spray applicators provide exceptional value and adhesive savings when compared to spiral spray and other traditional applicator heads. With ITW Dynatec’s patented UFD® Omega™ and random fiber patterns, UFD® Brand applicator heads provide up to 50% adhesive savings by using much less glue while maintaining, if not improving, bond strength.
Downloads
Features
- Up to 50% adhesive savings
- Better bond strength With Less Adhesive
- Long Life Stainless Steel Construction
- Precise Control of Adhesive Fiber Size and Placement
- Patented Omega™ and random fiber patterns use less adhesive and maintain or improve bond strength.
- Consistent coat weight application eliminates ridges and valleys common when using swirl applicators.
- Continuous pattern edge accuracy of ±2 millimeters, depending on the adhesive.
- Line-speed tracking and consistent coat weights regardless of variances of web-speed.
- Web width pattern changes without interruption when utilizing multiple solenoid inputs.
- Vast range of coat-weight capabilities.
- Patterns are not line-speed limited.
The Dynatec Difference
Patented Technology
Many companies say that they are innovators by providing techniques for laying down fiberized adhesive (spiral swirl and random fiber), but only ITW Dynatec has the patents to prove it.
ITW Dynatec invented Laminated Plate Technology, which is used in all ITW Dynatec UFD nozzles and is the most effective way to lay down fiberized adhesive. The unique and patented configuration of the laser cut, stainless steel-laminated plates is the only configuration on the market that allows the production of the Omega™ adhesive pattern and the production of the most effective Random Fiber pattern available.
This new product spawned many imitators, but none have been able to match the performance provided by ITW Dynatec’s Laminated Plate Technology. When you use UFD Fiberized Spray applicators from ITW Dynatec, you can be certain that you are using the best product on the market.
Random Adhesive Pattern 1 Random Adhesive Pattern 2
Omega Adhesive Pattern
Technical Data
| System | UFD 050 | UFD 050 | UFD 075 | UFD 100 | UFD 150 |
|---|---|---|---|---|---|
| Max. No. Modules | 1 | 2 | 3 | 4 | 6 |
| Spacing Between Nozzle Centers | — | 25.2 mm (1 in) | 25.2 mm (1 in) | 25.2 mm (1 in) | 25.2 mm (1 in) |
| Temperature Range | 38ºC to 218ºC (100ºF to 425ºF) |
||||
| Warm-up Time | 15 min. (cold start) 5 min. (module change) |
||||
| Adhesive Viscosity | 100 to 30,000 cps | ||||
| Maximum Adhesive Pressure | 68 bar (1000 psi) | ||||
| Air Pressure Range | 4.1 to 6.9 bar (60 to 100 psi) |
||||
| Electrical Service Standard | 200-240 VAC 1 Phase 50-60Hz |
||||
| Dimensions | UFD 050 | UFD 050 | UFD 075 | UFD 100 | UFD 150 |
|---|---|---|---|---|---|
| Height (H) | 261 mm (10.28 in) | ||||
| Depth (D) | 146.3 mm (5.76 in) | ||||
| Width (W) | 50 mm (1.97 in) | 50 mm (1.97 in) | 75 mm (2.95 in) | 100 mm (3.94 in) | 150 mm (5.91 in) |
