Vector Application Adapters - Vector Metering Platform

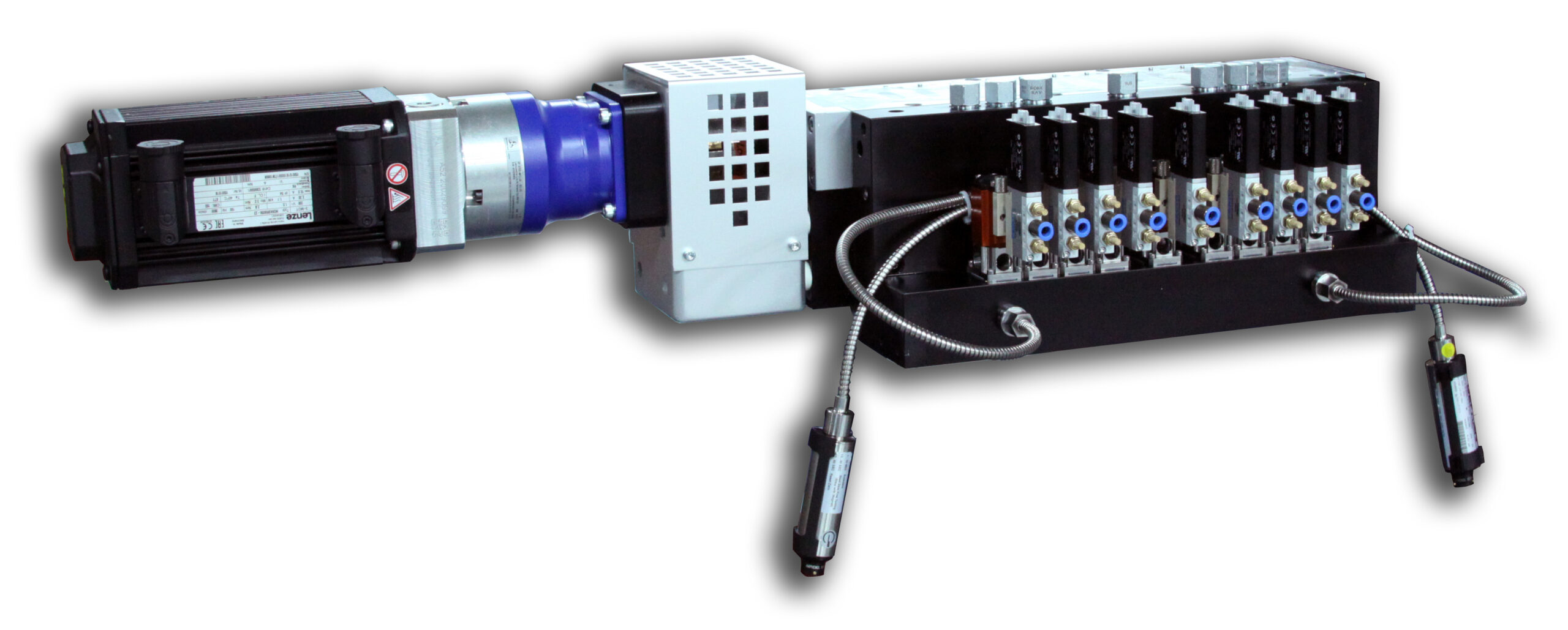

The Vector™ slot die applicator is available in six coating widths ranging from 100mm to 1000mm, expandable in 100mm increments, providing extreme accuracy at the point of application.
Overview
The Vector™ slot applicator meters adhesive to deliver precise amounts and coats intermittent or continuous adhesive films or ribbons to a customer’s substrate/ production line..
Downloads
Features
- Slot applicator shares a common pump base with other applicators including spray and bead.
- Pumps can be configured every 50mm or on custom centers.
- Features the Apex™ Series high-speed module with patent pending quick-change Festo solenoid. Apex™ Series modules can provide intermittent patterns as low as 4 ms or on time.
- AC or Servo motor and precision gearbox for accurate speed control of pumps (1 to 45RPM).
- Precision hardened steel die plates for long life.
- Metering accuracy of up to ±0.5% every 25mm width. Standard applicator available in widths up to 1000mm.
- Vector™ applicator capable of providing an individual metered flow output to each module.
- Vector™ pumps can be changed out in less than five minutes, minimizing changeover time.
- Available in a V-Slot configuration for multiple stripe patterns and very fast cycle speeds.
The Dynatec Difference
Vector™ Quick-Change Metering Pumps
Vector™ Pumps can be easily changed in less than five minutes by removing two retaining screws. With conventional equipment, pump changes often take more than an hour of cumbersome work with significant downtime.
Technical Data
| System | Vector™ Slot Adapter |
|---|---|
| Operating Temperature | 10º C to 218º C (50º F to 425º F) |
| Adhesive Add-On Rates | 0.4 to 300 cc/min/pump |
| Working Viscocity | 500 to 30,000 cps |
| Temperature Zone | 1 adhesive, 1 air heater |
| Available Pump Sizes | 0.15, .4, .5, .6, .7, .8, .9, 1.0, 1.7, 2.4, 3.34 cc/rev |
| Available Head Sizes | 100mm/4 pump, 200mm/8 pump, 300mm/12 pump, 400mm/16 pump, 500mm/20 pump, 600mm/24 pump, 700mm/28 pump, 800mm/32 pump, 900mm/36 pump, 1000mm/40 pump |
