DynaCold™ High Speed -  Cold Glue Applicator

"Evolution, not Revolution" is the thinking behind the DynaCold High Speed cold glue applicator.


 Overview
"Evolution, not Revolution" is the thinking behind the DynaCold High Speed cold glue applicator. Standardization of components and backward compatibility are designed into every aspect of this product line because we understand that you want the latest benefits and technologies without having to completely replace your adhesive application equipment every few years.

Its robust, stainless steel construction makes the DynaCold HS applicator a durable and reliable applicator, while the proven modular components can be easily adapted to a wide range of applications. Its design and construction also makes the DynaCold cold glue applicator corrosion resistant.

When it comes to demand, The DynaCold cold glue applicator has the specifications to meet your most difficult production demands - any of them. Its fast, 2 millisecond cycle time allows for shorter patterns and/or increased line speeds. And with adhesive application pressures up to 600psi (40 bar) and fluid viscosities up to 6000cps, The DynaCold High Speed cold glue applicator is ideal for your demanding applications.

The DynaCold applicator also has a modular nozzle with configurations for conventional flanged nozzles and multi-orifice nozzle plates. Because of the standard construction of the applicator body, one of the only differences between configurations is the nozzle itself. Every DynaCold High Speed cold glue applicator is also available in contact and non-contact configurations.


 Features
  • Two millisecond cycle time
  • Robust ball and seat design along with the elimination of dynamic seals result in minimized wear and extended life
  • Stainless steel construction and proven modular components
  • Adhesive application pressures to 600 psi (40 bar) with fluid viscosities to 6000 centipoise

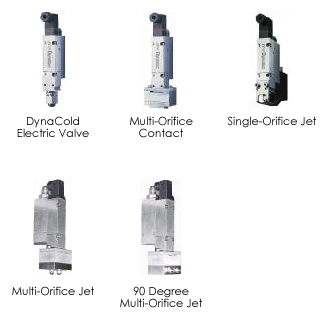

 Typical Configurations
DynaCold Typical Configurations
