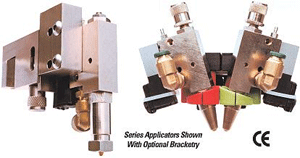

Applicator Overview
The DH12 Series Pneumatic Applicators are an excellent choice for use with water-based adhesives in a broad range of scenarios. Low voltage DC operation allows control without the need for proprietary pattern timers and the compact design makes for easy retrofit and installations. A miniature solenoid valve mounted directly to the applicator provides quick response times and positive flow control.installation.
With our contact or non-contact designs you can select the appropriate valve to meet your application needs.
 |
DH-12 Contact Applicator
- .031" Orifice
- Zero Cavity
- 24VDC Pneumatic Solenoid
- Viscosities to 1,000cps
- Fluid Pressures to 100psi
- Cycle Speed = 20ms
|
Have a lost or damaged manual? Download a digital one from the ITW Dynatec downloads page*.
*NOTE: You must be logged in to access the downloads page. All digital manuals are in .pdf format.
